HESCH / Products / Differential pressure regulator / Dif­fer­en­tial pres­sure reg­u­la­tor – HE 5422

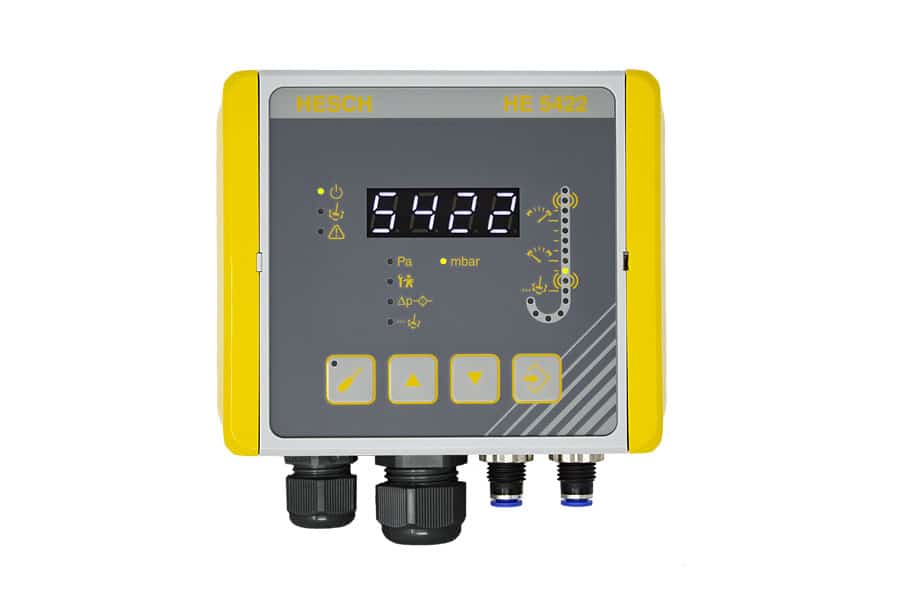

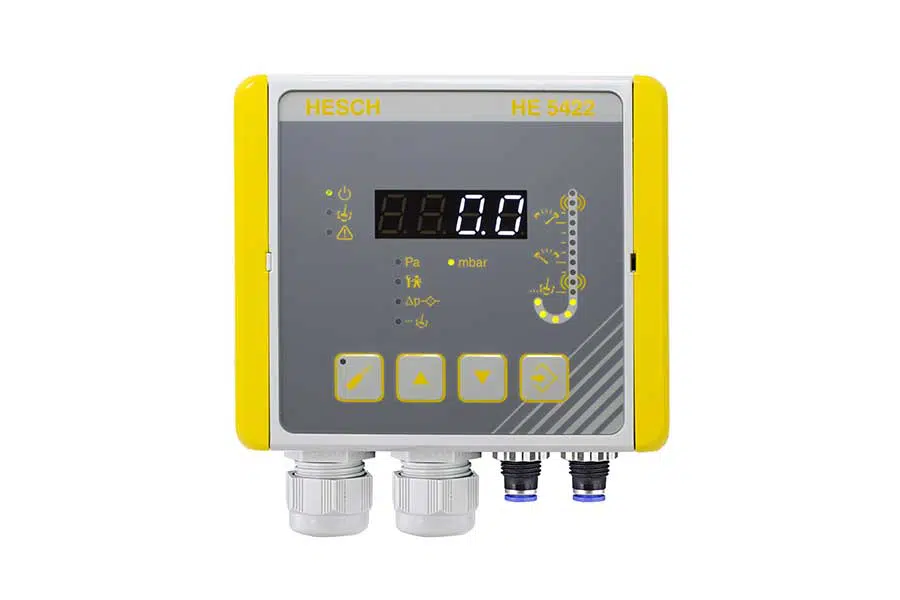

HE 5422 Differential pressure regulator polycarbonate housing

Dif­fer­en­tial pres­sure reg­u­la­tor – HE 5422

Monitors the control of the cleaning of industrial filter systems



Measuring ranges: ± 2.5, ± 5, ± 10, ± 25, ± 50, ± 100, ± 1000



Parameterization either via the device keys or with PC software EasyTool Controls 4.0



Can be used worldwide thanks to wide-range power supply 100 - 240 VAC and 24 V DC supply



Approval for ATEX zone 22







Produkt anfragen





Category:

HE 5422 Dif­fer­en­tial pres­sure reg­u­la­tor

It can be used to cover dif­fer­en­tial pres­sure ranges from ± 2.5 to ± 1000 mbar, with a basic accu­racy of ± 1% of the final value. The clean­ing range of the com­pact con­troller is defined by a lower and an upper thresh­old. With the wide-range power sup­ply unit for 100 – 240 V AC, as well as for 24 V DC, the HE 5422 dif­fer­en­tial pres­sure reg­u­la­tor can be used world­wide.





Details

– Pre-coating and data hold function – Analog output 0…10 V / 0(4)…20 mA, galvanically isolated – Test lead connection (quick coupling) Ø 6 mm – Housing dimensions 151 × 125 × 60 mm (W × H × D) – Operating and fault signal – Δp cleaning, low alarm, high alarm – Basic accuracy ± 1% of final value – Explosion protection ATEX zone 22 – Protection class IP65 – EasyTool Controls 4.0 – Service interface with USB/TTL adapter (option)

Technical data

HE 5422
Sup­ply
Volt­age100…240 VAC ± 10 %, 24 VDC ± 10 %
Power con­sump­tionMax­i­mum 5 W
Sen­sor sys­tem
Mea­sur­ing range(mbar)± 2.5, ± 5, ± 10, ± 25, ± 50, ± 100, ± 1000
Max. dif­fer­en­tial pres­sureMea­sure­ment range:
± 2.5… ± 10 mbar 0.35 bar
± 25 mbar 0.5 bar
± 50…± 100 mbar 1 bar
± 1000 mbar 5 bar
MediumAir as well as dry, non-aggres­sive mat­ter
Mea­sur­ing sys­temPiezore­sis­tive
Mea­sur­ing ranges
(mbar) (mbar)		± 2.5 … ± 10± 25 … ± 100± 1000
  Basic accu­racy± 1.25 % FSO
T = 25 °C		± 1.0 % FSO
T = 25 °C		± 0.5 % FSO
T = 25 °C
  Total error± 2 % FSO
T = 0…60°C		± 1.5 % FSO
T = 0…60°C		± 1.0 % FSO
T = 0…60°C
Con­nec­tion type
pneu­matic		HE 5422
2 x Schott push-in fit­tings for 6 mm hose outer diam­e­ter

HE 5422 HD
2 x Schott push-in fit­tings (nickel-plated brass) for 6 mm hose outer
diam­e­ter
Input/Output
Ana­log out­put (not
gal­van­i­cally iso­lated)		0…10 V0(4)…20 mA
  Max. per­mis­si­ble loadRL ≥ 1 kΩRA ≤ 400 Ω
Dig­i­tal inputsStart, post-clean­ing, mea­sured value hold func­tion, inter­nally
sup­plied 24 VDC / 1 mA
Relay out­put1 changeover con­tact: 250 VAC, 5 A as com­bined oper­at­ing
and error mes­sage
1 NO con­tact: 250 VAC, 5 A as clean­ing mes­sage
2 changeover con­tacts: 250 VAC, 5 A as alarm mes­sage
Soft­ware /
ser­vice
inter­face		Easy­Tool Con­trols 4.0 with USB / TTL adapter required (HESCH item no.: #61000011)
Hous­ing
ModelHE 5422
Dust­proof poly­car­bon­ate hous­ing (IP 65)

HE 5422 HD
Dust­proof die-cast alu­minium hous­ing (IP 65), pow­der-coated
Dimen­sionsHE 5422
151 × 160 × 61 mm (W × H × D) includ­ing screw con­nec­tion
(See sec­tion 4.1 Dimen­sions)

HE 5422 HD
162.7 × 165 × 61.7 (W × H × D) incl. con­nec­tion cou­pling
(See sec­tion 4.1 Dimen­sions)
Pro­tec­tion classIP 65
Instal­la­tionWall mounted, ver­ti­cal mount­ing posi­tion
Cable glandHE 5422
2 × M25 with mul­ti­ple seal­ing insert for 3 lines of diam­e­ter 7mm

HE 5422 HD
2 × M25 with mul­ti­ple seal­ing insert for 3 lines of diam­e­ter 7mm,
nickel-plated brass
Envi­ron­men­tal Con­di­tions
Stor­age-20°…+70° C
Trans­port-40°…+85° C
Oper­a­tion-20°…+55° C
In ATEX-Zone : --20°…+40° C
Rel­a­tive air humid­ityRel­a­tive humid­ity 95%, no con­den­sa­tion per­mit­ted, KUF accord­ing to
DIN 40400
Air and creep­age dis­tances
Pol­lu­tion degree 2
Over­volt­age cat­e­goryII
Power Con­nec­tion
Con­nec­tion typeSup­ply
Cross sec­tion rigid/flex: max. 2.5 mm²;
flex .: max. 1.5 mm² with wire end fer­rule

Rest
Cross sec­tion rigid / flex .: max. 1.5 mm²; flex .: max. 0.75 mm²
with wire end fer­rule

Errors and omis­sions excepted
