Dif­fe­ren­tial pres­sure trans­mit­ter – HE 5409

For monitoring the differential pressure of air or other non-flammable and non-aggressive gases.



Perfect for filter monitoring

Approval for EX Zone 2 and Zone 22

Ideal supplement for valve control HE 5731

Exact detection of differential pressures for gases

Quick commissioning due to easy mounting and easily accessible connection area







Request Product

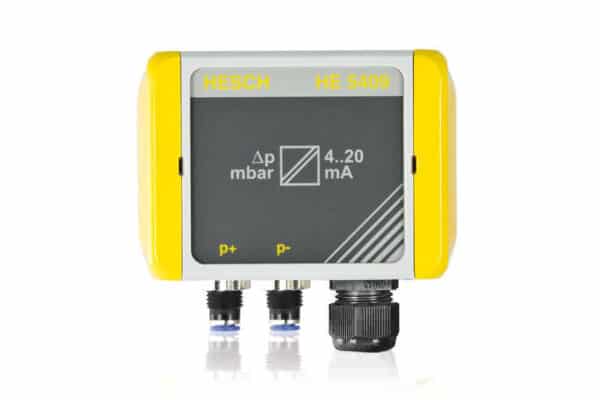

Dif­fe­ren­tial pres­sure trans­mit­ter – HE 5409

Dif­fe­ren­tial pres­sure must be recor­ded and moni­to­red when small pres­sure dif­fe­ren­ces can have large effects.
Dif­fe­ren­tial pres­sure trans­mit­ters thus take on important tasks in plant engi­nee­ring: they not only check the con­di­tion of fil­ter sys­tems, but also moni­tor the volume flows of ven­ti­la­tion and air-con­di­tio­ning sys­tems or mea­sure levels in liquid con­tai­ners.



The dif­fe­ren­tial pres­sure trans­mit­ter HE 5409 reli­ably deli­vers exact mea­su­red values and is also cha­rac­te­ri­zed by quick com­mis­sio­ning due to 2-wire tech­no­logy.



For inte­gra­tion into your risk assess­ment, the HE 5409 sup­ports you with qua­li­fied values for MTBF and MTTFd.





Quick assem­bly

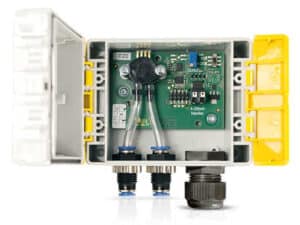

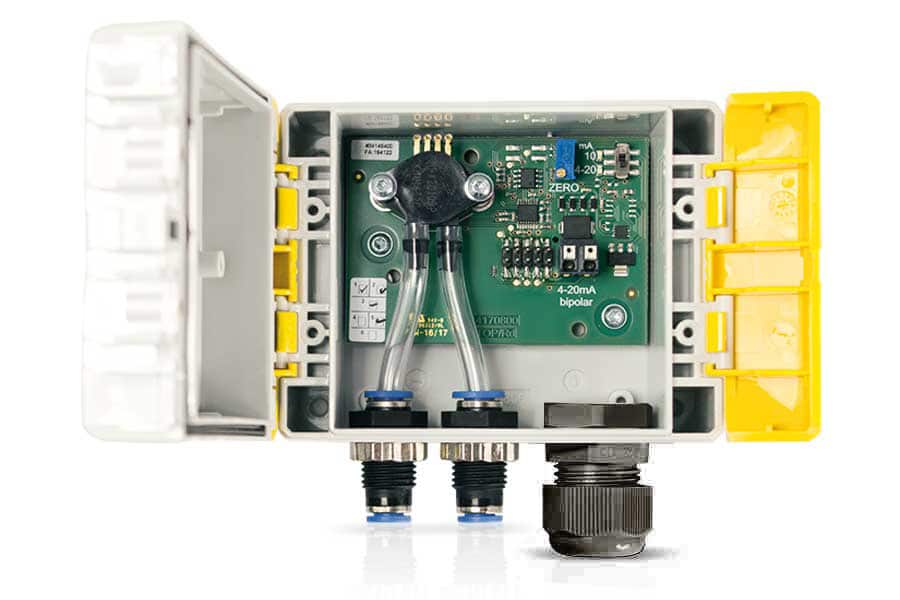

The housing is ope­ned and clo­sed without screws thanks to hinge tech­no­logy. This saves time during assem­bly. To open the device, sim­ply place a flat-blade screw­dri­ver at the desi­gna­ted point on the housing cover to pry open the locking mecha­nism. The housing cover remains on the device due to the hinge tech­no­logy and does not have to be com­ple­tely dis­mant­led, as it can be ope­ned up to an angle of 105°.



The mea­su­ring ran­ges avail­able as stan­dard can be found in the fol­lowing table. Spe­cial mea­su­ring ran­ges are avail­able on request.



Areas of application

– ventilating and air-conditioning systems
– heating technology
– filter monitor
– flow monitoring
– building services engineering
– firing technology
– extraction systems

Technical data

HE 5409
Mea­su­ring range (mbar)0–10; 0–25; 0–50; 0–100; 0–1000
Max. dif­fe­ren­tial pres­sureMea­su­ring range 0–10 mbar: 100 mbar
Mea­su­ring range 0–100 mbar: 750 mbar
Mea­su­ring range 0–1000 mbar: 4000 mbar
MediumAir and dry, not aggres­sive gases
Basic accu­racy± 1 % of final value
Tem­pe­ra­ture drift± 0.05 % / K of final value
Hys­te­re­sis± 0.05 % / of final value
Mea­su­ring sys­temSemi­con­duc­tor sen­sor
Auxi­li­ary powerUb = 10…36 V DC
Ana­lo­gue out­put4…20 mA, 2-con­duc­tor tech­no­logy
Max. load resis­tanceRA ≤ (Ub – 9 V) / 0,02 A
Pres­sure con­nec­tionPush-in bulk­head con­nec­tors for 6 mm hose outer dia­me­ter
HousingDust-pro­tec­ted housing
Dimen­sion113 × 80 × 60 (W × H × D)
Pro­tec­tion typeIP 65
Assem­blyWall moun­ting, assem­bly posi­tion ver­ti­cal
Con­nec­tionSpring force ter­mi­nal
Cable screw con­nec­tor1 × M 16 × 1,5 N für Kabel­durch­mes­ser von 4…8 mm
1 × M 20 × 1.5 N for cable dia­me­ters of 6…12 mm
Device identification/ explo­sion pro­tec­tion (soll "IP65" hier dazu­ge­schrie­ben wer­den?)e II3D Ex tc IIIC T135° Dc IP65
e II3G Ex nR IIC T4 Gc
Cli­ma­tic ambi­ent con­di­ti­ons
Sto­rage-20° … +70° C
Trans­port-40° … +85° C
Ope­ra­tion-20° … +55° C
Rela­tive humi­dity75 % rela­tive humi­dity, no con­den­sa­tion
Safety rela­ted ope­ra­ting figu­res
MTBF646 years
MTTFd1292 years
MTBFMax. 10 years
Cate­gory accord­ing to
EN-ISO 13849
B
Cal­cu­la­tion methods accord­ing to EN-ISO 13849Parts count
Ambi­ent tem­pe­ra­ture50°C

Errors and chan­ges excep­ted

Downloads

Data sheet HE 5409 – Ger­man

Data sheet HE 5409 – Polish



Ope­ra­ting Inst­ruc­tions HE 5409 – Ger­man

Ope­ra­ting Inst­ruc­tions HE 5409 – Eng­lish

Ope­ra­ting Inst­ruc­tions HE 5409 – Polish



Dril­ling tem­plate for HE 5409

Item Numbers

Mea­su­ring ran­ges (mbar)Item num­bers
0…2,5#54090299
0…5#54090599
0…10#54091199
0…25#54092599
0…50#54095099
0…100#54091299
0…1000#54091399
-10…10 #54090999
