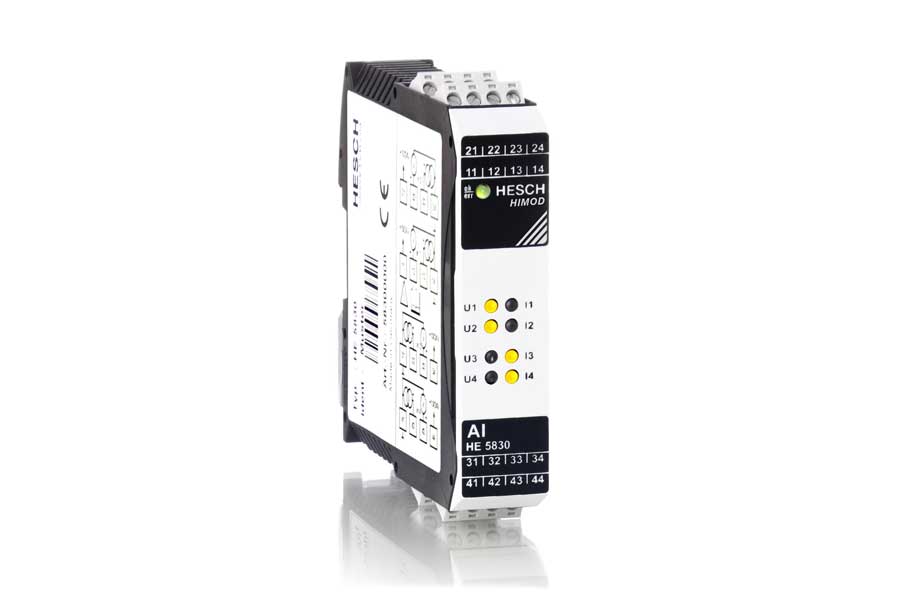

Ana­log input module – HE 5830

The analog input module acquires up to four analog standard signals (current or voltage) from the process level and transmits them to the higher-level bus system.

4 x A-IN standard signal (U/I)

with LED for status indication







Request Product





Com­mu­ni­ca­tion with the bus cou­p­ler takes place via an asyn­chro­nous serial RS485 con­nec­tion. The module is par­ti­cu­larly sui­ta­ble for detec­ting the signals of 2-wire trans­mit­ters with 4…20 mA, 3-wire trans­mit­ters with 0…10 V and poten­tio­metric sen­sors.



A trans­du­cer sup­ply of 10 or 24 V with a cur­rent of 10 mA or a maxi­mum of 25 mA is avail­able for each chan­nel.



The signal state of the inputs is indi­ca­ted via sta­tus LEDs. The areas sup­ply vol­tage, fiel­dbus, logic and inputs are gal­va­ni­cally iso­la­ted from each other. In the event of an error, the modu­les ope­rate with pre­viously defi­ned error values to ensure safe pro­cess con­trol (fail safe).





Technical Specifications

HE 5830
Module type>HIMOD ana­lo­gue input module 4 x AI
Power sup­plyOver inter­nal T-bus: 24 V DC / 7,5 V DC
Cur­rent con­sump­tionMax. 160 mA at 24 V / max. 60 mA at 7.5 V
Electri­cal iso­la­tionNone
Vol­tage input
  Value range-10…+10 V / -5…+5 V / -1…+1 V
  Input impe­danceR > 1 MΩ
Cur­rent input
  Value range-20…+20 mA
  Input impe­danceBürde 50 Ω
Con­ver­ter reso­lu­tion /
con­ver­sion time
16 bit / 160 ms
Cha­rac­te­ris­tic devia­tion≤ 0,1 %
Tem­pe­ra­ture influ­ence≤ 0,1 %
Power sup­ply for sen­sors10 mA at 10 V or 25 mA at 24 V, short-cir­cuit-proof
Dia­gnostic dis­play
  8 x yel­low LEDsSta­tus of the inputs
  1 x 2-colour LEDModule sta­tus
Wiring tech­ni­queScrew / plug ter­mi­nals, con­duc­tor cross-sec­tion 0.2…2.5 mm²
Spring clamp / plug ter­mi­nals, con­duc­tor cross-sec­tion 0.2…2.5 mm²
Weight150 g

Errors and chan­ges excep­ted
