Relay out­put module – HE 5826

4 x relay output, potential-free changeover contact

with LED for status indication

galvanically isolated outputs

Module exchange during operation (live hot swap)







Request Product

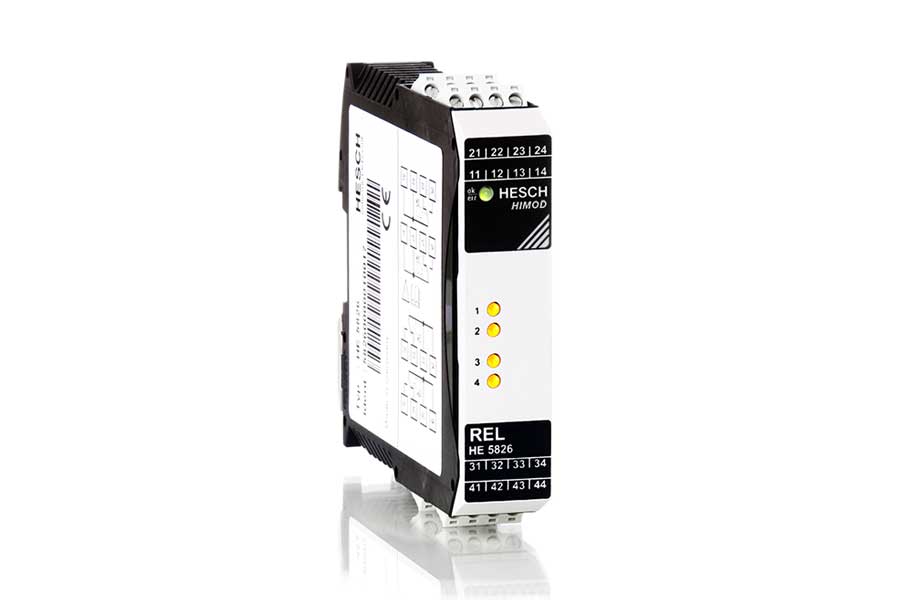

Relay out­put module HE 5826

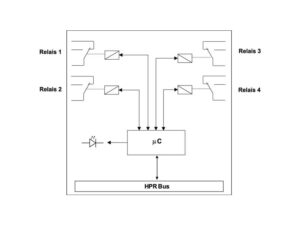

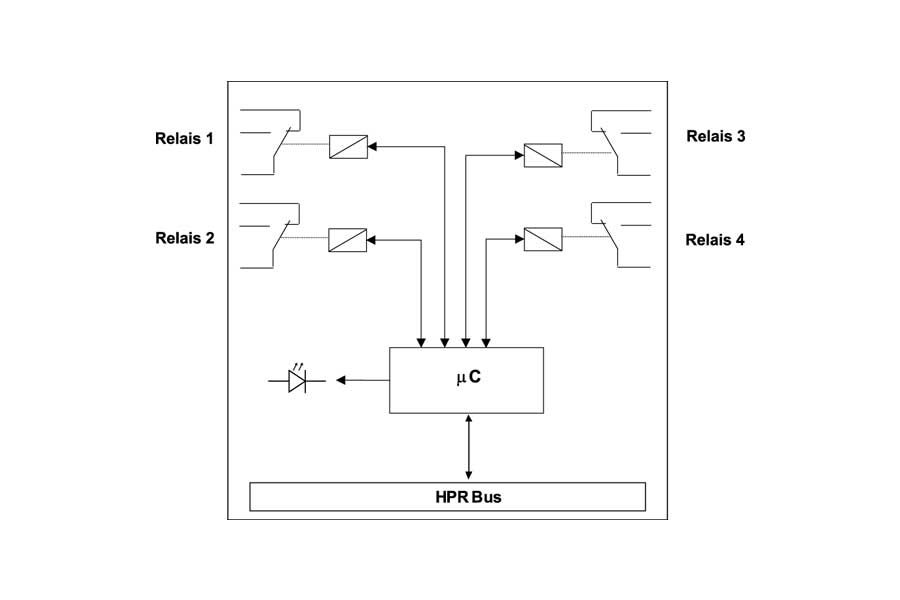

The relay out­put module HE 5826 con­trols up to four signals from the hig­her-level bus sys­tem and for­wards them via four poten­tial-free chan­geo­ver con­ta­cts to con­nec­ted sys­tems or instal­la­ti­ons. The out­put logic can be inver­ted indi­vi­du­ally. Com­mu­ni­ca­tion with the bus cou­p­ler takes place via an asyn­chro­nous serial RS485 con­nec­tion.



The signal sta­tus of the relay out­puts is indi­ca­ted via sta­tus LEDs. The out­puts and the logic area are gal­va­ni­cally iso­la­ted from each other. Module errors and errors in case of over­load, short cir­cuit or mis­sing sup­ply are detec­ted and dis­played.

In the event of a fault, the out­puts change to a pre­viously defi­ned safe sta­tus (Fail Safe).



Technical Data

HE 5826
Module typeHIMOD relay out­put module 4 x REL
Power sup­plyOver inter­nal T-bus: 24 V DC / 7.5 V DC
Cur­rent con­sump­tionMax. 100 mA at 24 V / max. 50 mA at 7.5 V
Electri­cal iso­la­tion2300 Veff[(sup­ply, logics) / per relay]

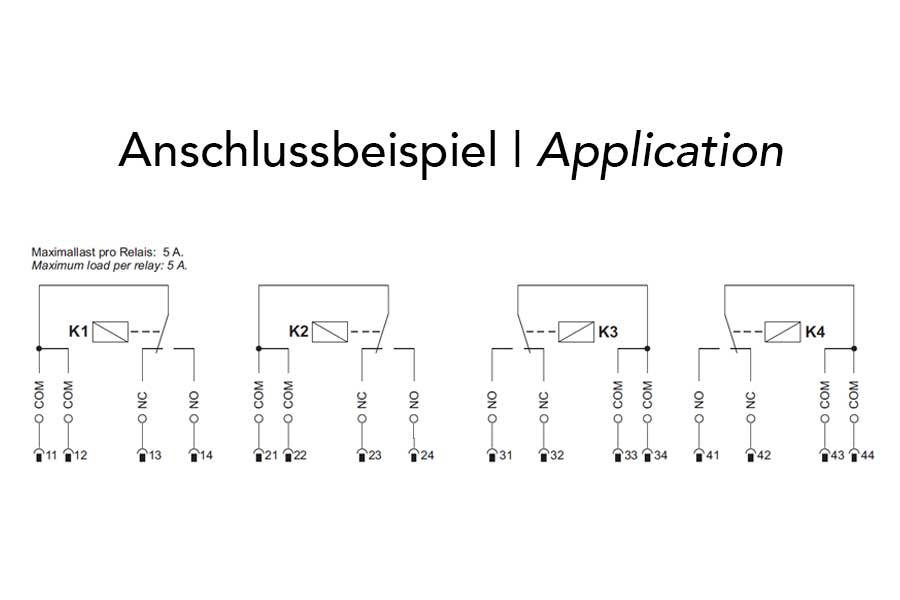

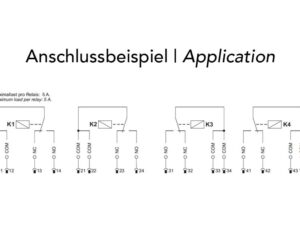

Relay out­put
  PrinciplePoten­tial-free change-over con­tact, logics inver­ti­ble
  Con­tact mate­rialAgNi
  Pro­tec­tive mecha­nismsExter­nal pro­tec­tive mea­su­res necessary as requi­red
  Fail safeTran­si­tion of the out­puts to a safe state in the event of error
Swit­ching capa­city
  AC signalsUmax = 250 V, Imax = 5 A
  DC signalsUmax = 30 V, Imax = 5 A
Dia­gnostic dis­play
  4 x yel­low LEDsSta­tus of the inputs
  1 x 2-colour LEDModule sta­tus
Wiring tech­ni­queScrew / plug ter­mi­nals, con­duc­tor cross-sec­tion 0.2…2.5 mm²
Spring clamp / plug ter­mi­nals, con­duc­tor cross-sec­tion 0.2…2.5 mm²
Weight150 g

Downloads

Data sheet HE 5826 – Ger­man

Ope­ra­ting Inst­ruc­tions HE 5826 – Ger­man
