HE 5697 MFC Star­ter Kit

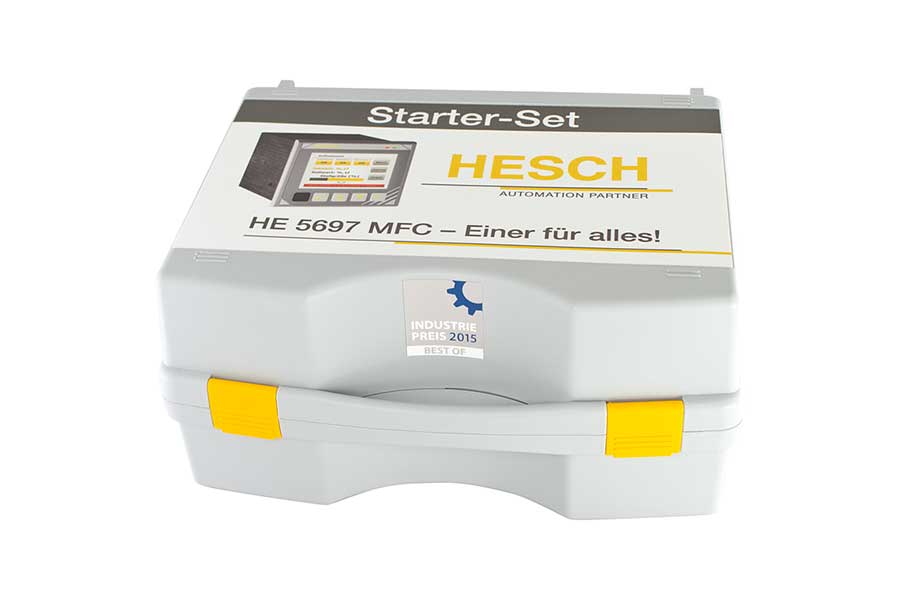

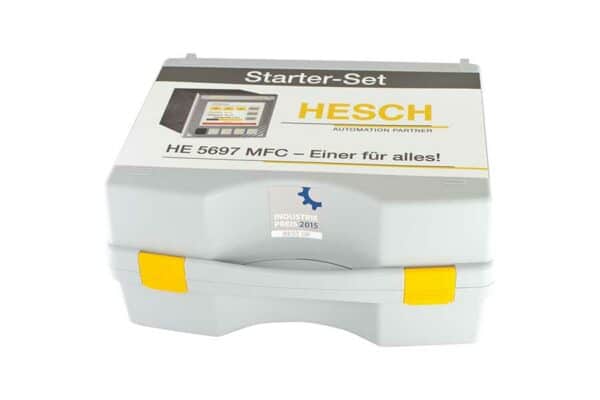

Basic version in practical case



1 × HE 5697 MFC Multifunction Controller

1 × communication card

1 × I/O card

1 × PC software »EasyTool MFC«

1 × USB dongle incl. license







Produkt anfragen



Indi­vi­dual solu­ti­ons for the pro­cess indus­try

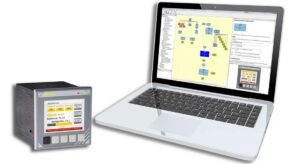

Multifunction controller and laptop with EasyTool MFC software



With the HE 5697 MFC, every plant tech­ni­cian can map com­plex pro­cess sequen­ces intui­tively, quickly and com­ple­tely without pro­gramming know­ledge. This way you remain inde­pen­dent of a pro­gramm­a­ble logic con­trol­ler, also cal­led PLC. You can adapt, opti­miseand fur­ther deve­lop your desi­red pro­ces­ses at any time in a cost-neu­tral man­ner.

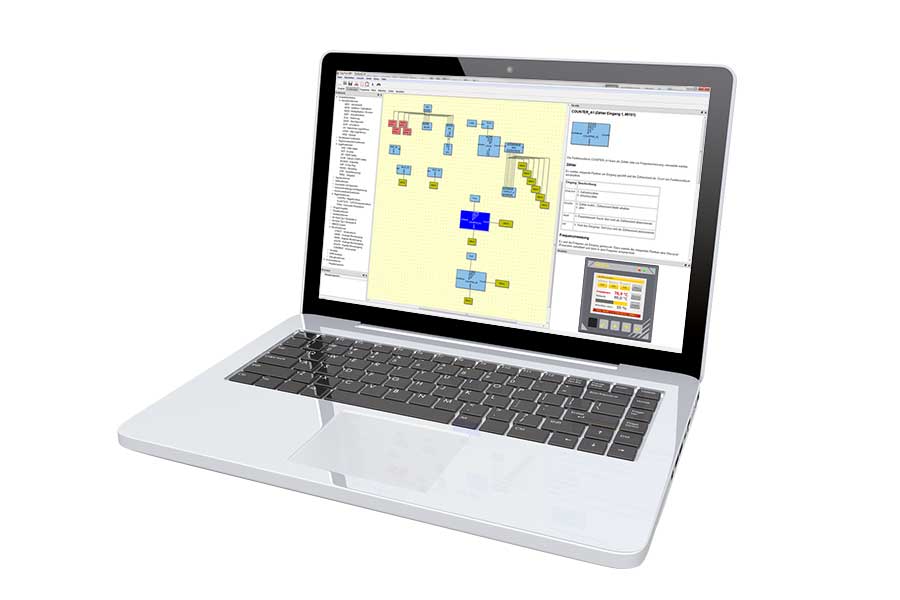

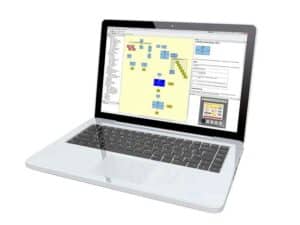

Soft­ware »Easy­Tool MFC« – Always under­stand­a­ble

The cor­re­spon­ding soft­ware “Easy­Tool MFC” has more than 100 pre-con­fi­gu­red and tes­ted func­tions that can be easily assem­bled on the PC by drag & drop. The soft­ware offers you up to 20 natio­nal lan­guages to choose from. You decide freely and fle­xi­bly which and how many lan­guages your app­li­ca­tion should offer. The soft­ware pro­vi­des you with the trans­la­tion tem­plate with just a few clicks. All texts in your pro­ject are pre-sor­ted the­ma­ti­cally by the pro­gram and out­put as a for­mat­ted CSV file.



Uni­ver­sally app­li­ca­ble

From food pro­duc­tion (hea­ting of a batch with sub­se­quent coo­ling) to ther­mal pro­ces­sing, there are count­less secon­dary pro­ces­ses that are so dif­fe­rent that their sequence con­trol could not pre­viously be repre­sen­ted by just one con­trol­ler. The HESCH mul­ti­func­tion con­trol­ler is the solu­tion for every con­ceiva­ble app­li­ca­tion in the field of indus­trial (ther­mal) pro­ces­ses with sequence con­tro.



Try it out! We would be plea­sed to make you an offer for your indi­vi­dual STARTER-SET.





Technical data

HE 5697 MFC
Ver­sor­gungs­span­nung 24 VDC / 100…240 VAC
Strom­auf­nahme Max. 350 mA (24 V DC)
CPUCor­tex A8, 600 MHz
USB-Schnitt­stel­lenRück­seite: 1 × USB 2.0 Host (Typ A)
Front­seite: 1 × Mini-USB 2.0 Device (Typ B), gal­va­nisch getrennt

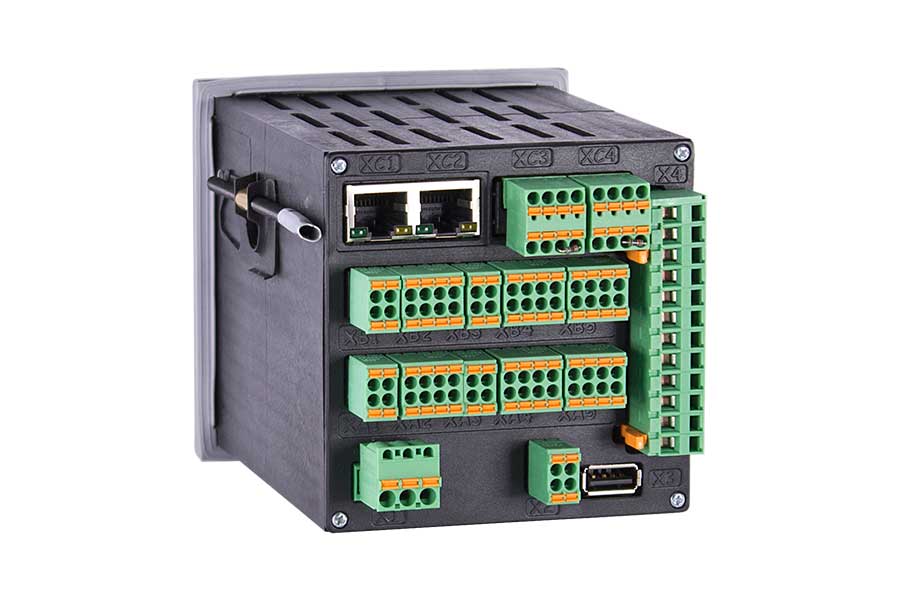

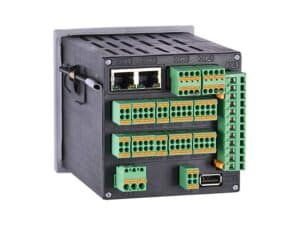

Steck­plätze1 × für Kom­mu­ni­ka­ti­ons­karte
2 × für E/A-Kar­ten
Relais4 poten­zi­al­freie Relais­aus­gänge mit Wechs­ler­kon­tak­ten (230 V AC / 5A; 24 V DC / 5A)
Spei­cherinter­ner Mas­sen­spei­cher 4 GByte Micro SD-Karte
DDR2 64 MByte
Flash 128 MByte
MRAM 128 kByte
ja, netz­aus­fall­ge­puf­fert
Anzeige / Bedie­nungTFT mit Hin­ter­grund­be­leuch­tung, 320×240 Pixel QVGA, resis­ti­ver Touch-Screen; 3,5“;
4 freibe­leg­bare Tas­ten; 2 pro­gram­mier­bare LEDs für Zustands­an­zei­gen
GehäuseSchalt­ta­fel­ein­bau­ge­häuse
Abmes­sun­gen 98 × 98 × 115 mm (ohne Ste­cker) / 98 × 98 × 130 mm (mit Ste­cker) (B×H×T)
GehäuseSchalt­ta­fel­ein­bau­ge­häuse, Schutz­art IP65 front­sei­tig / IP20 rest­li­che Berei­che, Abmes­sun­gen: 98 × 98 × 115 mm (ohne Ste­cker)
Schutz­artIP65 front­sei­tig, IP20 rest­li­ches Gehäuse

Errors and omis­si­ons excep­ted

Scope of delivery

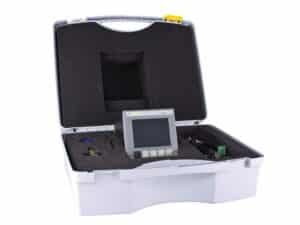

Your star­ter set in the basic ver­sion con­tains:

  • 1 × HE 5697 MFC mul­ti­func­tion con­trol­ler (mains sup­ply 100-240VAC incl. con­nec­tion cable)
  • 1 × com­mu­ni­ca­tion card (2 × Ether­net, 2 × RS485)
  • 1 × I/O card (2 × uni­ver­sal signal input, 2 × stan­dard signal input, 2 × ana­log out­put ( 4-20 mA or 0-10 V), 6 × digi­tal input/output)
  • 1 × PC soft­ware »Easy­Tool MFC« on USB stick incl. Ope­ra­ting inst­ruc­tions and USB con­nec­tion cable
  • 1 × USB don­gle incl. License for data trans­fer from PC to HE 5697 MFC

Other con­fi­gu­ra­ti­ons also pos­si­ble, please con­tact us.

Downloads

Ope­ra­ting Inst­ruc­tions HE 5697 MFC – Ger­man

Ope­ra­ting Inst­ruc­tions HE 5697 MFC – Eng­lish
