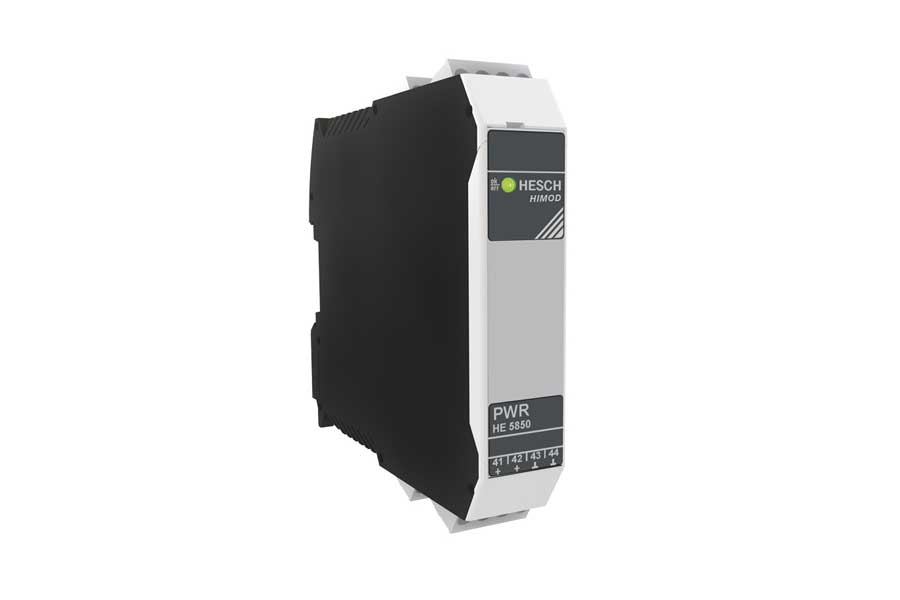

Power Module – HE 5850

Power supply for 16 additional HIMOD modules



Indication of the signal status via LED







Produkt anfragen





The Power Module HE 5850 pro­vi­des a sup­ple­men­tary power sup­ply for addi­tio­nal HIMOD modu­les. With the HIMOD Power Module it is pos­si­ble to con­nect up to 62 modu­les per Fieldbus Cou­pler, wher­eby each Power Module can sup­ply up to 16 modu­les on a sepa­rate rail.



Com­mu­ni­ca­tion with the fieldbus cou­pler is main­tai­ned by a serial bus exten­sion. The use of the Power Modu­les enables sys­tem expan­sion with dis­tri­bu­tion to dif­fe­rent instal­la­tion levels and the crea­tion of sepa­rate poten­ti­als within a sys­tem.

Technical data

HE 5850
Modul­typHIMOD Power Modul
Span­nungs­ver­sor­gung24 V DC (-20 % /+25 %), ver­po­lungs- und über­span­nungs­si­cher
Strom- / Leis­tungs­auf­nahmemax. 130 mA / 3 W Eigen­be­darf
Span­nungs­ver­sor­gung für I/O-Module24 V DC (max. 4 A) und 7,5 V DC (max. 2 A), kurz­schluss­fest
Anzahl kop­pel­ba­rer I/O-Module1...16 oder 1…62 mit zusätz­li­chen Power-Modul
Poten­ti­al­tren­nungkeine
Anschlüsse / Schnitt­stel­len
  HPR-Bus1 x T-Bus-Ver­bin­der
  Ein­spei­sung 24 V DC1 x Schraub- / Steck­klem­men­block
Dia­gno­se­an­zeige
  1 x 2-far­bige LEDModul­sta­tus
Anschluss­tech­nikSchraub-/ Steck­klem­men, Lei­tungs­quer­schnitt 0,2…2,5 mm²
Feder­kraft-/ Steck­klem­men, Lei­tungs­quer­schnitt 0,2…2,5 mm²
Gewicht150 g

Errors and omis­si­ons excepted

Downloads

Data sheet HE 5850 – Ger­man

Data sheet HE 5850 – Eng­lish
