CANopen Fiel­dbus Cou­p­ler – HE 5811

Fieldbus coupler with CANopen interface



Transmission of process, parameter and configuration data

multifunctional inputs and outputs

with LED for status indication

Module exchange during operation (live 'hot swap')







Request Product

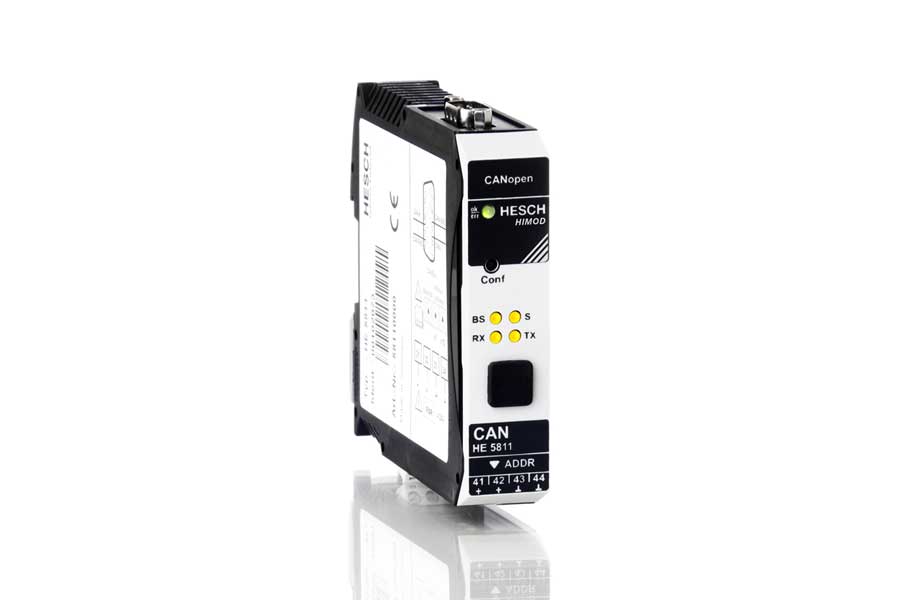

CANopen Fiel­dbus Cou­p­ler HE 5811

HIMOD is an intel­li­gent I/O sys­tem for all com­mon fiel­dbus stan­dards. The fiel­dbus cou­p­ler HE 5811 with a CAN bus inter­face enab­les the trans­mis­sion of pro­cess, para­me­ter and con­fi­gu­ra­tion data. The fiel­dbus con­nec­tion is made on the top of the Bus Cou­p­ler via a Sub-D con­nec­tor. The serial com­mu­ni­ca­tion inter­face allows simple con­nec­tions to hig­her-level con­trol­lers, visua­liz­a­tion tools, etc.



Each func­tion module pro­vi­des pro­cess values to the fiel­dbus cou­p­ler. The built-in module pro­ces­sor relie­ves the fiel­dbus cou­p­ler of mea­su­red value cal­cu­la­ti­ons. The inputs and out­puts are mul­ti­func­tio­nal and require a spe­ci­fi­ca­tion. This is stored in the cou­p­ler and is trans­fer­red when a simi­lar module is repla­ced, even during ope­ra­tion.

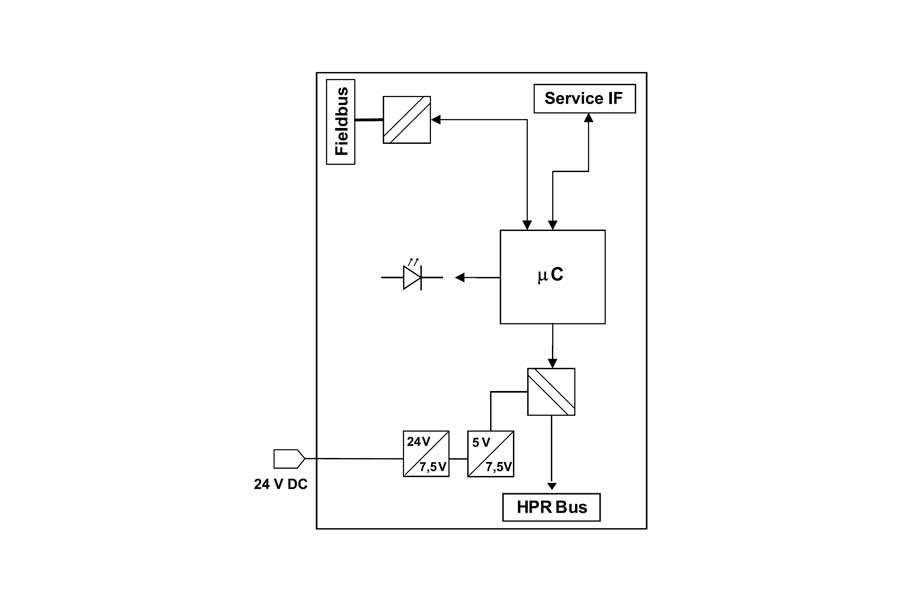

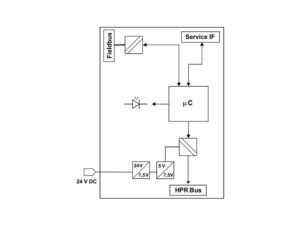

In the bus cou­p­ler, the areas of sup­ply vol­tage, fiel­dbus and logic are gal­va­ni­cally iso­la­ted from each other. The sys­tem con­fi­gu­ra­tion con­sis­ting of bus cou­p­ler and I/O modu­les can be quickly deter­mi­ned via the but­ton inte­gra­ted in the front of the housing. Con­fi­gu­ra­tion and para­me­teriz­a­tion of the indi­vi­dual modu­les can be done via the fiel­dbus as well as via the Smart­Port inter­face.



Up to 16 func­tion modu­les can be con­nec­ted and sup­plied to one bus cou­p­ler. The sys­tem struc­ture can be exten­ded by using power sup­ply modu­les:



  • Up to 62 func­tion modu­les can be addres­sed logi­cally by one bus cou­p­ler.
  • Up to 4 instal­la­tion levels can be set up.
  • The maxi­mum exten­sion may be up to 10 m long.



CAN 'Con­trol­ler Area Net­work' CAN is a serial bus sys­tem which ori­gi­nally comes from the auto­mo­tive sec­tor. The signals are trans­mit­ted via a twis­ted pair. The inter­fe­rence immu­nity of CAN net­works is par­ti­cu­larly high due to various mea­su­res, such as CRC checks, use of dif­fe­ren­tial signals, etc. CAN descri­bes the phy­si­cal bus con­cept inclu­ding the data link layer. The app­li­ca­tion layer, i.e. the pro­to­col to be used, is not descri­bed by CAN. The­re­fore, a dis­tinc­tion must be made bet­ween CAN (phy­si­cal bus) and CANopen (pro­to­col, app­li­ca­tion layer).





CANopen

CANopen describes the standardized use of communication services and thus forms a communication profile. For the user, CANopen has the advantage that devices from different manufacturers can be combined in a CAN network. However, differences may occur in the number of communication objects supported. In contrast to PROFIBUS-DP, CANopen has the advantage of true multi-master capability.

Technical data

HE 5811
Module typeHIMOD field bus cou­p­ler CANopen
Power sup­ply24 V DC (-20 %/+25 %), pro­tec­ted against reverse pola­rity and over­vol­tage
Cur­rent / power con­sump­tionMax. 170 mA / 4 W own requi­re­ments
Power sup­ply for
I/O modu­les
24 V DC (max. 4 A) and 7.5 V DC
(max. 2 A), short-cir­cuit-proof
Num­ber of I/O modu­les that can be cou­pled1...16 or 1…62 with addi­tio­nal power modu­les
Electri­cal iso­la­tion1000 Veff[inter­nal (sup­ply / fi eld bus / logics) / exter­nal]
Con­nec­tions / inter­faces
  CAN-bus  1 x D-SUB con­nec­tor, 9-pin
  Ser­vice / Smart­Port  1 x RJ10, front
   HPR-bus  1 x T-bus con­nec­tor
Sup­ply 24 V DC  1 x screw / plug ter­mi­nal block
CAN-bus
  CAN-bus con­nec­tion accord­ing to IEC 11898, CANopen pro­to­col
  Baud rate 20…1000 kbaud, can be set via BCD switch
  Address range: 1…99, can be set via BCD switch
  Address range: 1…126, can be set with soft­ware, if BCD switch = 0
Con­trol ele­ments
Baud rate / addres­ses  3 x BCD rotary coded switch
Node con­fi­gu­ra­tion  1 x but­ton "Con­fig", at the fron
Dia­gnostic dis­play
  5 sta­tus-LEDs  1 x device sta­tus,   4 x bus sta­tus
Wiring tech­ni­queScrew / plug ter­mi­nals, con­duc­tor cross-sec­tion 0.2…2.5 mm²
Weight150 g

Errors and omis­si­ons excep­ted
