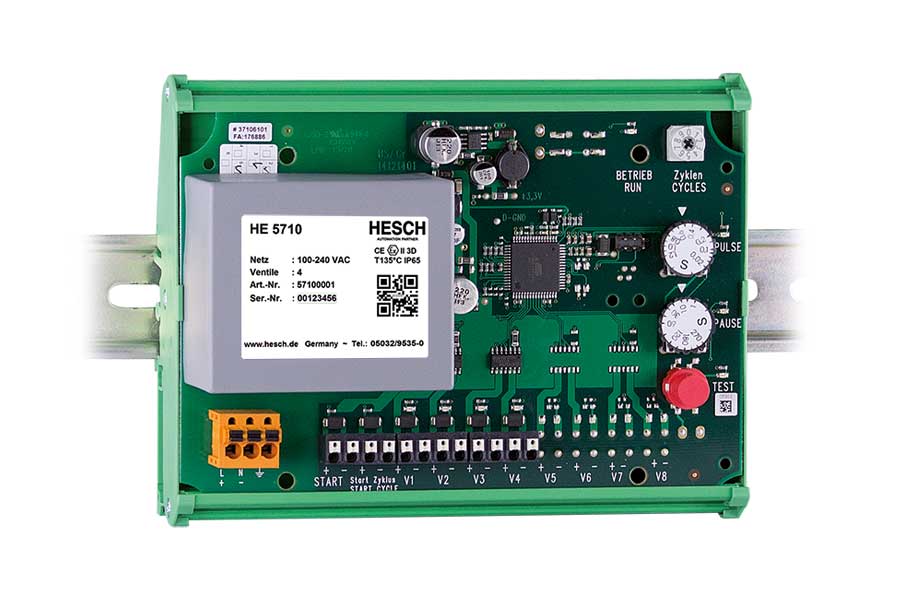

Valve con­trol – HE 5710 (stan­dard rail)

Small control unit at the best price/performance ratio

Control of up to 4 valves

Automatic valve detection

Function display (LEDs) for all valves

Simple installation







Request Product





Valve con­trol for small dust fil­ter sys­tems

The valve con­trol HE 5710 con­trols up to 4 solenoid val­ves sequen­ti­ally and is equip­ped with all necessary func­tio­nal fea­tures.

The con­trol unit is avail­able in a dust-tight Makro­lon housing for use in ATEX zone 22 and also as a stan­dard rail ver­sion for instal­la­tion in the con­trol cabi­net.

Applications

Bunker top filter, industrial vacuum cleaner

Technical data

HE 5710
Ver­sor­gung100 – 240 V AC, 50 – 60 Hz
Option: 24 V DC ± 10% [Sicher­heits­klein­span­nung SELV]
Leis­tungs­auf­nahme30 VA, Eigen­ver­brauch ca. 3 W
LEDs4 × für Ven­til­an­steue­rung, rot
RUN [Betrieb], grün
PULSE [Puls], gelb
PAUSE [Pause], gelb
TEST [Test], grün
Bedien­ele­menteTas­ter TEST [Test]: Das nächste Ven­til wird ange­steu­ert

PULSE [Puls]: Puls­zeit-Ein­stel­lung
Poten­zio­me­ter von 0,02 – 1,2 s

PAUSE [Pause]: Pau­sen­zeit-Ein­stel­lung
Poten­zio­me­ter von 1 – 270 s

CYCLES [Zyklen]: Zyklen-Ein­stel­lung
Dreh­ko­dier­schal­ter 0 – 9; 0 deak­ti­viert die Funk­tion
Ein­gängeSTART, Nach­rei­ni­gung
Ven­til­aus­gänge4
Ven­til­span­nung 24 V DC / 1A, kurz­schluss­fest
Elek­tri­scher AnschlussFeder­kraft­klem­men für 1,5 mm²
EMVDIN-EN 61000-6-2 (Stör­fes­tig­keit im Indus­trie­be­reich)
DIN-EN 61000-6-4 (Stör­aus­sen­dung im Indus­trie­be­reich)
Explo­si­ons­schutzNur bei Aus­füh­rung im staub­dich­ten Makro­lon­ge­häuse
Ven­til­steue­rung – HE 5710 (Gehäuse)
GehäuseAuf­bau auf Norm­schien­en­trä­ger 165 mm × 111 mm (B × H)

Errors and omis­si­ons excep­ted

Downloads

Ope­ra­ting Inst­ruc­tions HE 5710 – Ger­man

Ope­ra­ting Inst­ruc­tions HE 5710 – Eng­lish

Decla­ra­tion of Con­for­mity HE 5710 Stan­dard Rail – Ger­man
