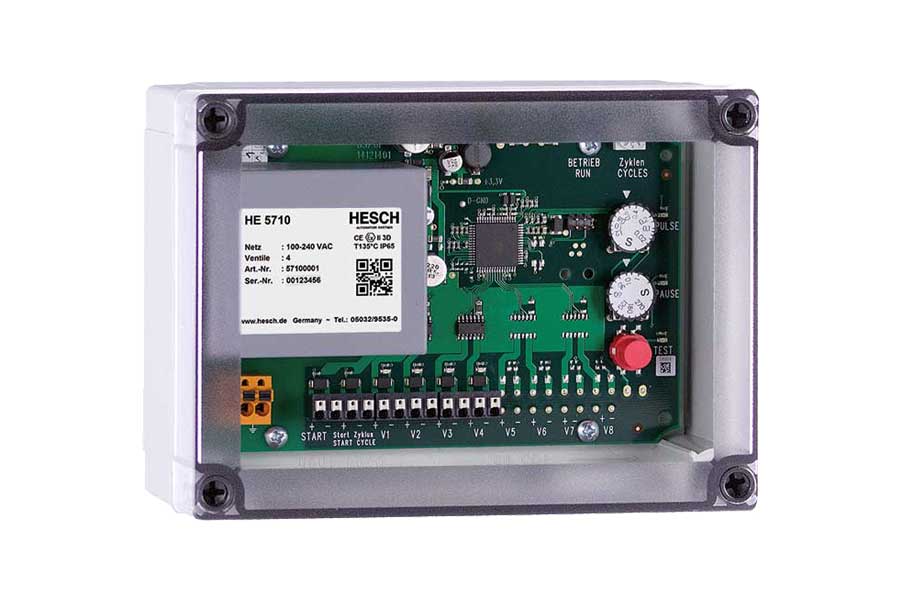

Valve con­trol – HE 5710 (housing)

Small control unit at the best price/performance ratio

Control of up to 4 valves

Automatic valve detection

Function display (LEDs) for all valves

Simple installation







Produkt anfragen





Valve con­trol for small dust fil­ter sys­tems

The valve con­trol HE 5710 con­trols up to 4 solenoid val­ves sequen­ti­ally and is equip­ped with all necessary func­tio­nal fea­tures.

The con­trol unit is avail­able in a dust-tight Makro­lon housing for use in ATEX zone 22 and also as a stan­dard rail ver­sion for instal­la­tion in the con­trol cabi­net.

Applications

Bunker top filter, industrial vacuum cleaner

Technical data

HE 5710
Sup­ply vol­tage100 – 240 V AC, 50 – 60 Hz
Option: 24 V DC ± 10%
Power con­sump­tion30 VA, own power con­sump­tion about 3 W
LEDs4 for valve con­trol unit, red
RUN, green
PULSE, yel­low
PAUSE, yel­low
TEST, green
Con­trol ele­mentsBut­ton TEST: the next valve is actua­ted

PULSE, set­ting the pulse period
Poten­tio­me­ter from 0.02 and 1.2 seconds

PAUSE, set­ting the pause time
Poten­tio­me­ter from 1 and 270 seconds

CYCLES: set­ting the cycles
Rotary coded switch 0 - 9; 0 deac­ti­va­tes the func­tion
InputsSTART: start clea­ning (con­tact clo­sed)
Valve out­puts1-4
Valve vol­tage 24 V DC / 1A, short-cir­cuit proof
Electri­cal con­nec­tionSpring ter­mi­nals for 1.5 mm²
EMVDIN-EN 61000-6-2 (Stör­fes­tig­keit im Indus­trie­be­reich)
DIN-EN 61000-6-4 (Stör­aus­sen­dung im Indus­trie­be­reich)
Explo­sion pro­tec­tion ATEX II 3D Ex tc IIIC T135° Dc, IP65, Zone 22 (ver­sion with the housing)
Gehäuse
Ver­si­ons- Con­struc­tion on stan­dar­di­sed rail sup­port; 165 mm × 111 mm (W × H)
- A dust­proof Makro­lon housing (IP65) 180 mm × 130 mm × 78 mm (W × H × D)

Errors and omis­si­ons excep­ted
