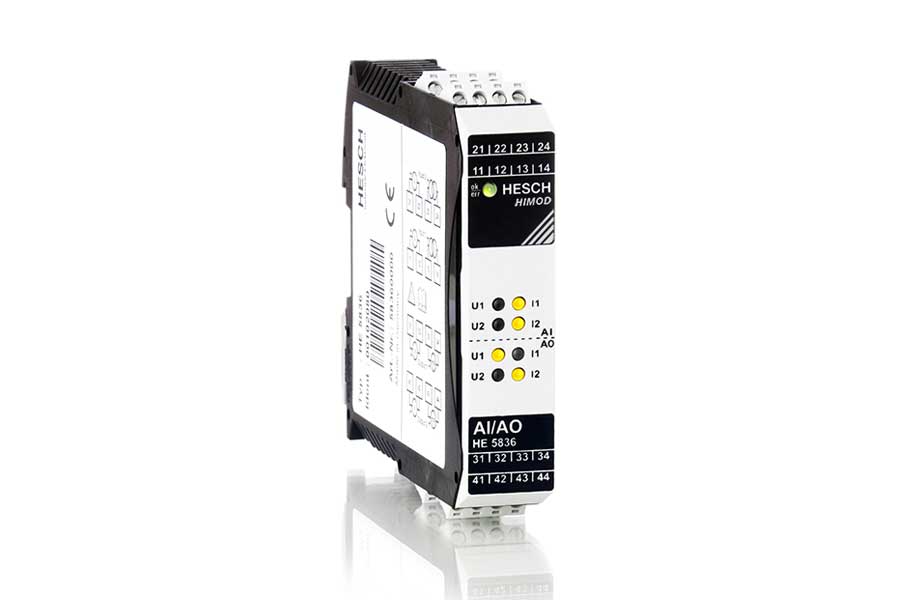

Ana­log input/output mod­ule – HE 5836

HE 5836 is a combination module: It acquires two analog standard signals (current or voltage) from the higher-level bus system and transmits them to the process level and vice versa from the process level to the bus system.



2 x analog outputs (current / voltage selectable)

Galvanic isolation of the inputs

Measuring cycle 160 ms







Produkt anfragen

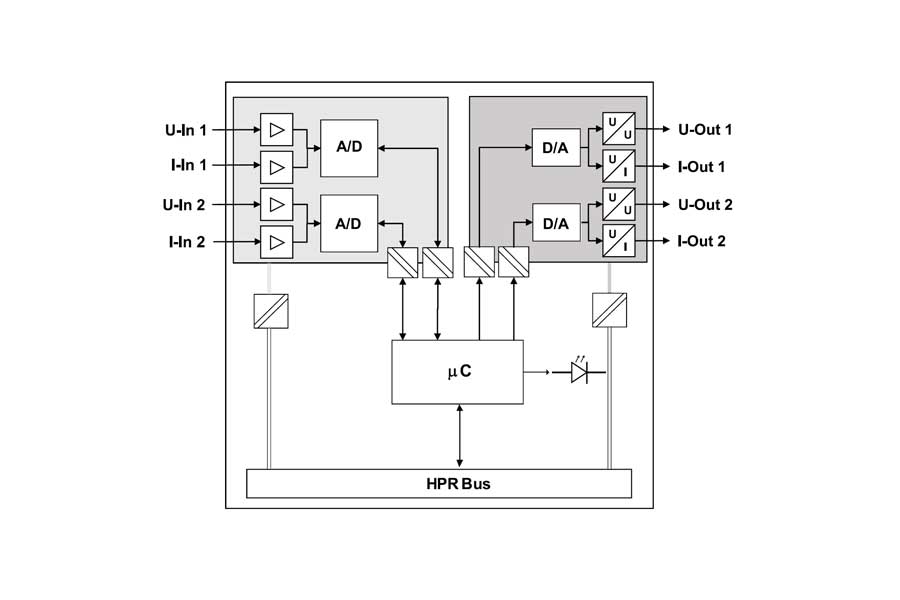

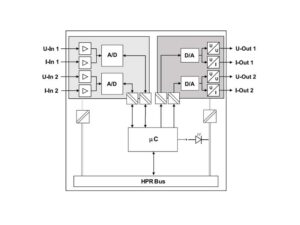

The ana­log input/output mod­ule HE 5836 acquires two ana­log stan­dard sig­nals (cur­rent or volt­age) from the higher-level bus sys­tem and trans­mits them to the process level as well as two ana­log stan­dard sig­nals from the process level, which are trans­mit­ted to the higher-level bus sys­tem. Com­mu­ni­ca­tion with the bus cou­pler takes place via an asyn­chro­nous ser­ial RS-485 con­nec­tion.



The sig­nal state of the inputs is indi­cated via sta­tus LEDs. The areas sup­ply volt­age, field­bus, logic and inputs are gal­van­i­cally iso­lated from each other. In the event of an error, the mod­ules oper­ate with pre­vi­ously defined error val­ues to ensure safe process con­trol (fail safe).

Technical data

HE 5836
Mod­ul­typHIMOD Ana­log-Kombi-Modul 2 x AI, 2 x AO
Span­nungsver­sorgungüber inter­nen T-Bus: 24 V DC /
7,5 V DC
Stro­mauf­nahmemax. 200 mA bei 24 V / max. 55 mA bei
7,5 V
Poten­tial­tren­nung2300 Veff [(Ver­sorgung, Logik) / Kanal 1, 2 /
Kanal 3, 4]
Span­nungs- / Stromein­gang
  Wer­te­bere­ich-10…+10 V, -5…+5 V,
-1…+1 V / -20…+20 mA
  Ein­gangsim­ped­anzSpan­nung­sein­gang: R > 1 MΩ / Stromeingang: Bürde 50 Ω
Wan­dler­au­flö­sung /
Wand­lungszeit
16 bit / 160 ms
Kennlin­ien­ab­we­ichung  ≤ 0,1 %
Tem­per­a­ture­in­fluss  ≤ 0,1 %
Diag­noseanzeige
  8 x gelbe LEDsSta­tus der Eingänge
  1 x 2-far­bige LEDModul­sta­tus
Anschlusstech­nikSchraub-/ Steck­klem­men, Leitungs­quer­schnitt 0,2…2,5 mm²
Fed­erkraft-/ Steck­klem­men, Leitungs­quer­schnitt 0,2…2,5 mm²
Gewicht150 g

Errors and omis­sions excepted
