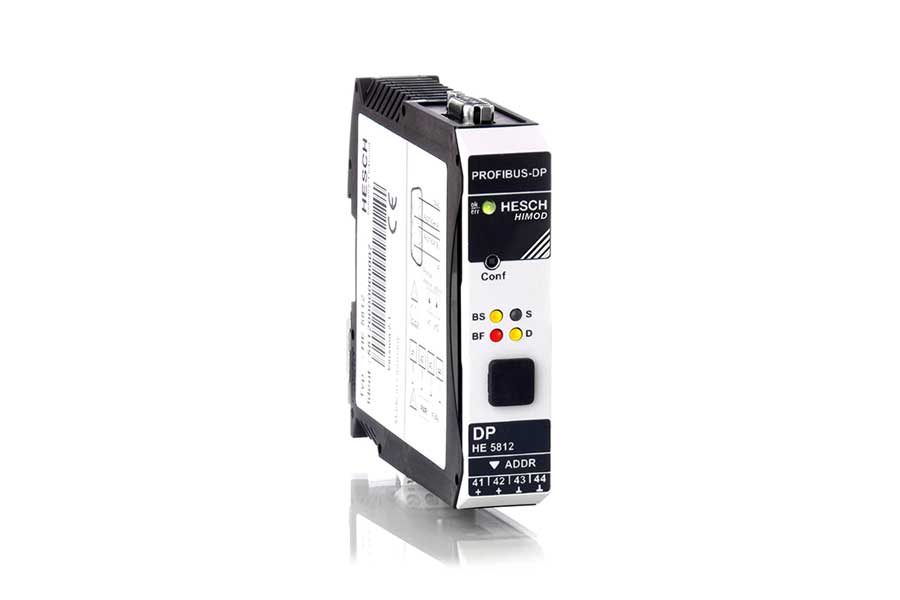

Pro­fi­bus-DP Fiel­dbus Cou­p­ler – HE 5812

The Fieldbus Coupler HE 5812 connects the modular Process I/O HIMOD System with a Profibus-DP network.



Central coupling module for PROFIBUS-DP connection

PROFIBUS-DP - Slave according to IEC 61158, protocol DPV1

Front interface for PC 'SmartPort

up to 62 modules per coupler with additional power modules







Request Product





The con­nec­tion to the Pro­fi­bus-DP is estab­lis­hed via a 9-pin D-SUB socket.

Up to 62 I/O modu­les can be con­nec­ted per bus cou­p­ler. The modu­les are con­nec­ted via an inter­nal bus sys­tem. Up to 16 modu­les can be ope­ra­ted directly at the bus cou­p­ler, fur­ther­more the sys­tem can be exten­ded by an addi­tio­nal power module – HE 5850.

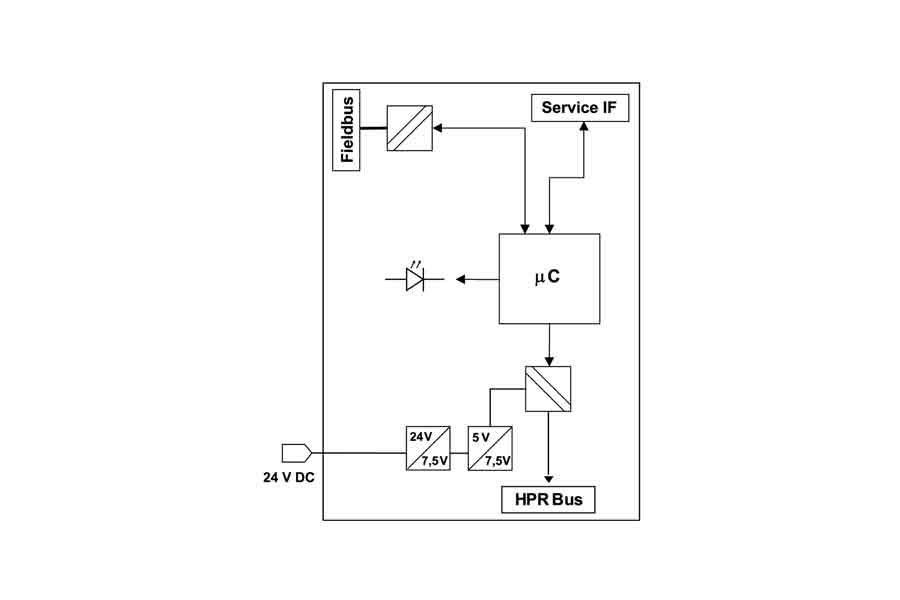

In the bus cou­p­ler, the areas of sup­ply vol­tage, fiel­dbus and logic are gal­va­ni­cally iso­la­ted from each other. The sys­tem con­fi­gu­ra­tion con­sis­ting of bus cou­p­ler and I/O modu­les can be quickly deter­mi­ned via the but­ton inte­gra­ted in the front of the housing. Con­fi­gu­ra­tion and para­me­teriz­a­tion of the indi­vi­dual modu­les can be done via the fiel­dbus as well as via the Smart­Port inter­face.

Technical data

HE 5812
Module typeHIMOD field bus cou­p­ler Pro­fi­bus-DP
Power sup­ply24 V DC (-20 % / +25 %), pro­tec­ted against reverse pola­rity and over­vol­tage
Cur­rent / power con­sump­tionMax. 170 mA / 4 W own requi­re­ments
Power sup­ply for
I/O modu­les
24 V DC (max. 4 A) and 7.5 V DC (max. 2 A), short-cir­cuit-proof
Num­ber of I/O modu­les that can be cou­pled1...16 or 1…62 with addi­tio­nal power modu­les
Electri­cal iso­la­tion1000 Veff [inter­nal (sup­ply / fi eld bus / logics) / exter­nal]
Con­nec­tions / inter­faces
  Profi bus-DP1 x D-SUB socket, 9-pin
  Ser­vice / Smart­Port1 x RJ10, front
  HPR-bus1 x T-bus con­nec­tor
  Sup­ply 24 V DC1 x screw ter­mi­nal block
Pro­fi­bus-DP
  Profi bus-DP slave accord­ing to IEC 61158, DPV1 pro­to­col
  Baud rate 9.6…12000 kbaud, auto­ma­tic set­ting
  Address range: 1…99, can be set via BCD switch
  Address range: 1…126, can be set with soft­ware, if BCD switch = 0
Con­trol ele­ments
  Addres­ses2 x BCD rotary coded switch
  Node con­fi­gu­ra­tion1 x but­ton "Con­fig", at the front
Dia­gno­se­an­zeige
  5 Sta­tus-LED1 x device sta­tus, 4 x bus sta­tus
Wiring tech­ni­queScrew / plug ter­mi­nals, con­duc­tor cross-sec­tion 0.2…2.5 mm²
Weight150 g

Errors and omis­si­ons excep­ted

Downloads

Data sheet HE 5812 – Ger­man

Data sheet HE 5812 – Eng­lish

Ope­ra­ting Inst­ruc­tions HE 5812 – Ger­man

Ope­ra­ting Inst­ruc­tions HE 5812 – Eng­lish

HE__093A (GSD)
